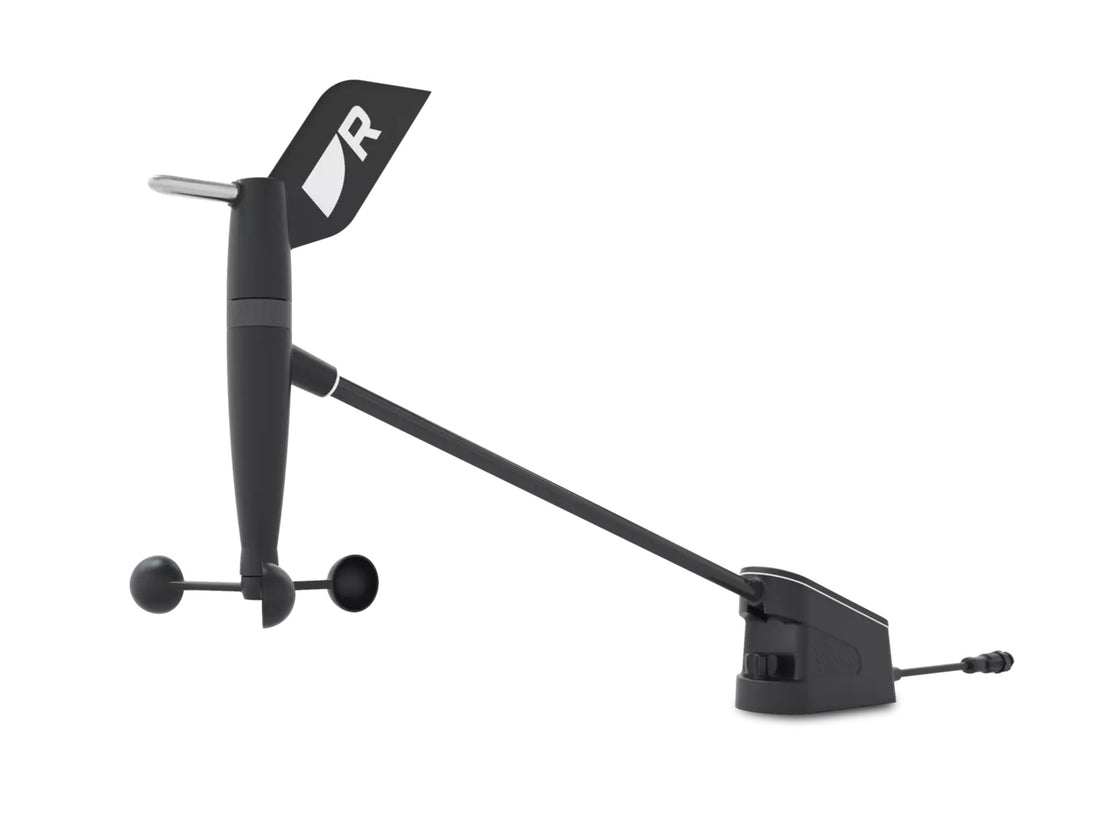

Raymarine RSW Smart Wind Transducer Short Arm 30m Cable - E70670
$780.54
$934.99
Part # RAYE70670
UPC: 723193846629
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Raymarine RSW Wired, Smart Wind transducer with 30m Cable
Model: E70670- Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
- Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.
- Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.
The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.
Specifications| Wind transducer (including cable): 657.762 mm (25.90 in) | |
| Width | Wind transducer: 46.96 mm (1.85 in) |
| Height | Wind transducer: 305.86 mm (12.04 in) |
| Power | |
| Nominal supply voltage | 12 V dc (via SeaTalk NG) |
| Operating voltage range | 9 V to 16 V dc |
| Power Consumption | < 100 mW |
| Fuse rating | Ensure that the SeaTalk NG backbone is protected by a 5 A fuse |
| NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: | 1 |
| Environmental | |
| Operating temperature range | -25 degC to +55 degC (-13 degF to +131 degF) |
| Storage temperature range | -30 degC to +70 degC (-22 degF to +158 degF) |
| Relative humidity | Masthead: 100% |
| Waterproof rating | Wind transducer: IPx6/IPx7 |
| Wind | 115 mph (185 kph) |
| Vibration | EN 60945:2002 (exposed) |
What's in the Box:
- No.10 x 3/4 self tapping screws x 4 (for mounting the wind transducer)
- No.7 x 3/4 in self tapping screws x 2 (for mounting the gateway)
- 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
- Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
- Mast cable
