Sitex MDA5H Class B AIS No Wifi - MDA-5H
$849.36
$1,199.00
Part # SITMDA5H
UPC: 010407510712
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

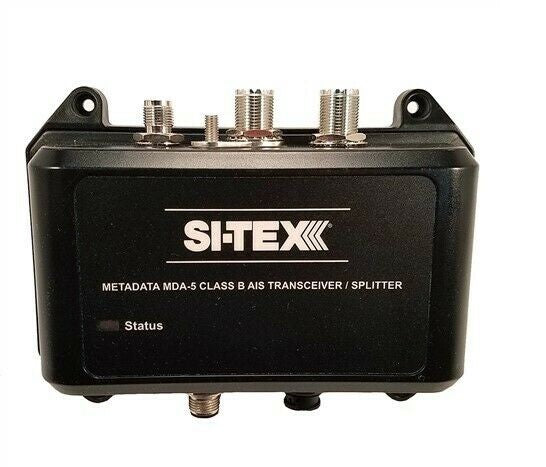

Sitex MDA-5 Class B+ SOTDMA AIS Transceiver NO Wifi
Model: MDA-5H- The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Module on the market
- 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
- SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don't have network priority.
- Integrated zero loss VHF antenna splitter - no second antenna needed
- Water Proof certified to IPX7
- NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
- Built-In GPS & GLONASS satellite navigation receiver
- 2 Year Warranty
- Dual Receivers decodes all DSC & AIS messages, including MOB & SART
- Ultra-power efficient
- IEC-62287-2, FCC and USCG certified
| 5 Watts | |
| VHF Antenna Connector | SO-239 UHF |
| GPS Antenna Connector | TNC |
| Frequency Range | 156.025 - 162.025 Mhz |
| Input Voltage | 9.6-31.2 Vdc |
| Current Draw | 220mA Average Power Consumption |
| Operating Temperature Range | -25 degC - +55 degC |
| Ingress Protection | IP67 |
| Dimensions - Transceiver | 6.8 W x 5.0 in H x 2.0 in D |
What's in the Box:
- MDA-5H Transceiver
- Commercial Grade External GPS Antenna with Coax Cable
- Mounting hardware
- Power & Data Interface cable
- VHF Radio Connection cable
- Product information DVD
