Xantrex

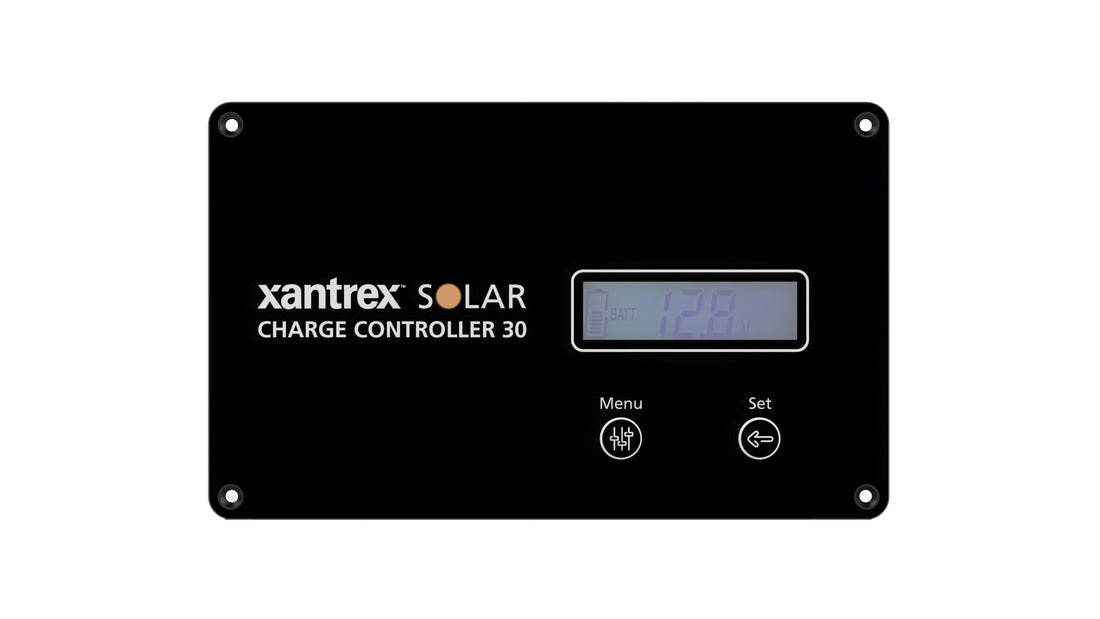

Xantrex Solar PWM 30A Charge Controller - 709-3024-01
$124.98
$184.44
Part # XAN709302401
UPC: 715535906870
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Xantrex PWM Charge Controller
Model: 709-3024-01- Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
- Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
- Best-in-class PV array and battery protections
- Aesthetic flush-mount industrial design
Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.
The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor.
Specifications| 12/24V Auto-Detect | |
| Battery Input Voltage Range | 8V to 32V |
| Rated Charge Current | 30A |
| Max. PV Short Circuit Current | 30A |
| Max. PV Open Circuit Voltage | 50A |
| Battery Types Supported | Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO ) |
| elf-consumption | 12V: 4.2mA 24V: 2.6mA |
| Temperature Compensation Coefficient | -3mV/ degC/2V |
| Grounding | Common negative |
| ENVIRONMENTAL DATA | |
| Storage Temperature Range | -30 degC to 80 degC |
| Operating Temperature Range | -20 degC to 55 degC (fully rated output) |
| MECHANICAL DATA | |
| Dimensions | 7.03 W x 4.31 in H x 1.86 in D (178.5mm W x 109.4mm H x 47.3mm D) |
| Max. Cable Size (PV Array and Battery | 0.63in2 (16mm2) / 6AWG |
| Recommended Cable Size | 0.24in2 (6mm2) / 10AWG or larger |
